xK007 One-way Piston Vertical Steam EngineLarge Cylinder Piston Steam Engine-Build Your Own Engine
The world's first steam engine was invented by the ancient Greek mathematician Hero of Alexandria (Hero of Alexandria) in the 1st century A.D. steam ball (Aeolipile), which is the prototype of the steam engine.

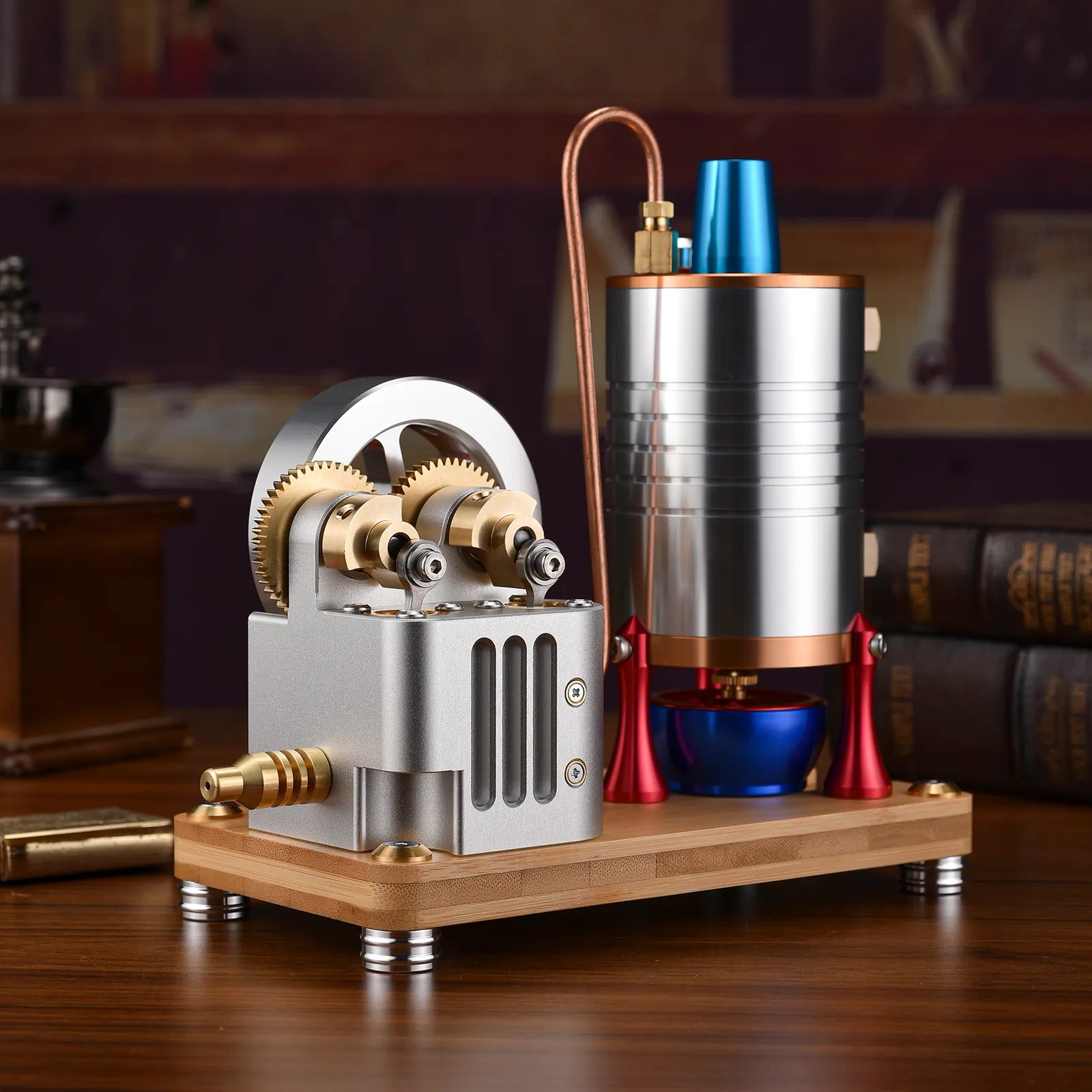

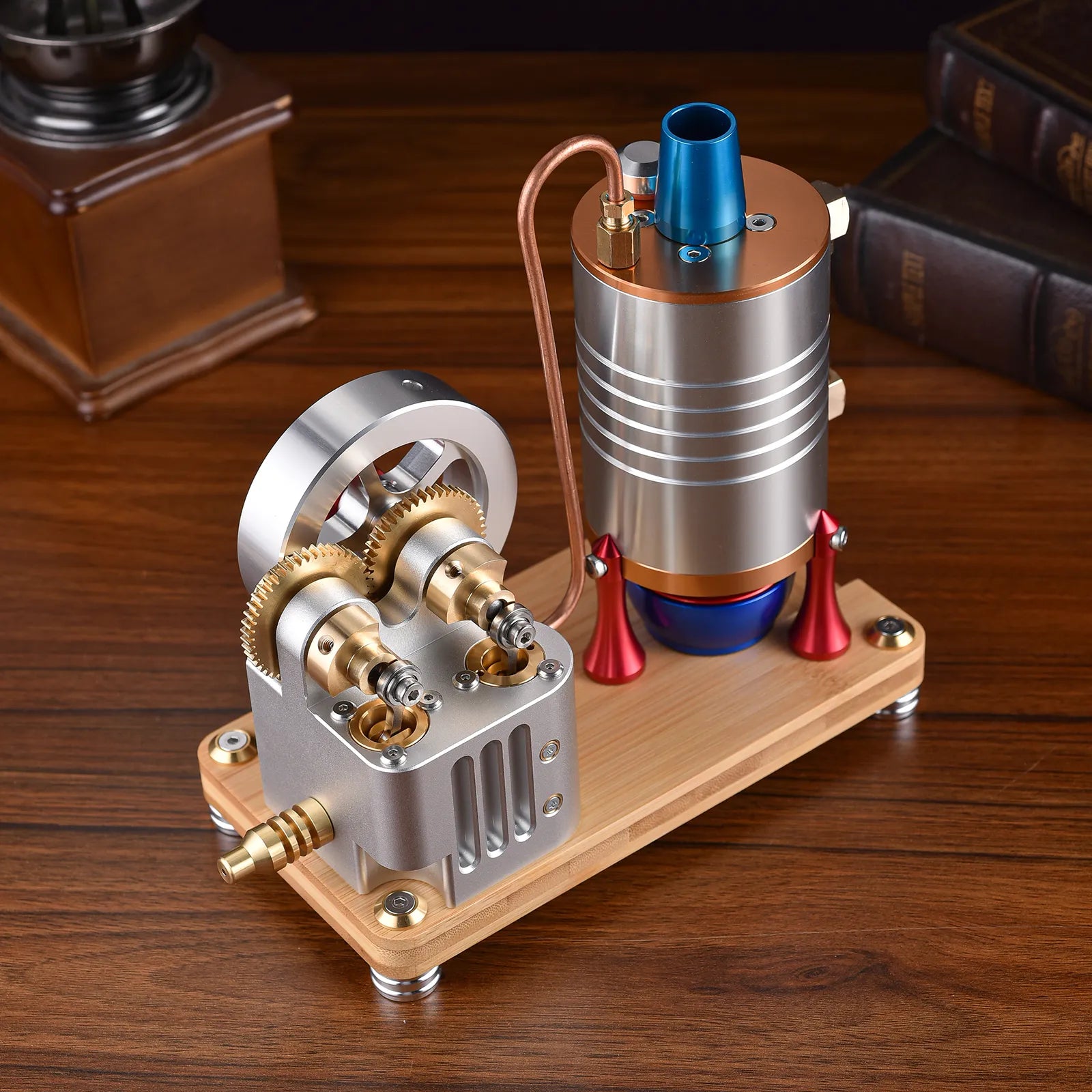

K007 is a one-way piston vertical steam engine, the machine is equipped with a set of vertical boiler, through the copper conduit will be introduced into the host steam, steam through the gas exchange valve into the cylinder, pushing the piston to do the work, the piston crankshaft and the gas exchange valve crankshaft gear linkage, control of air intake and exhaust process.
large cylinder
Cylinder bore is 14MM, piston stroke is 12MM, cylinder liner and piston are made of brass, as long as the steam engine is equipped with a large enough air source, this large cylinder design can provide considerable torque and power.
Aluminum alloy one-piece molding
With aluminum alloy CNC molding, the biggest advantage of this design is to reduce the error brought about by the assembly of multiple parts, a molding of the main body is not only extremely solid structure, the whole machine can also be controlled to a higher level of precision.
Liquid-solid dual-purpose alcohol lamp
The redesigned alcohol lamp eliminates the wick, and liquid alcohol is filled into the alcohol bowl to ignite the alcohol directly.
Specifications:
Size:(MM):220X100X197
Net Weight:1.7kg
Gross weight(with packing):2.1kg
Boiler outer diameter:68mm
Boiler capacity:167ml
Piston Diameter:14mm
Piston Stroke:12mm
Flywheel diameter:78mm
Flywheel material: aluminum alloy
Ventilation valve material:H59 brass
Crankshaft wheel material:H59 brass
