Description

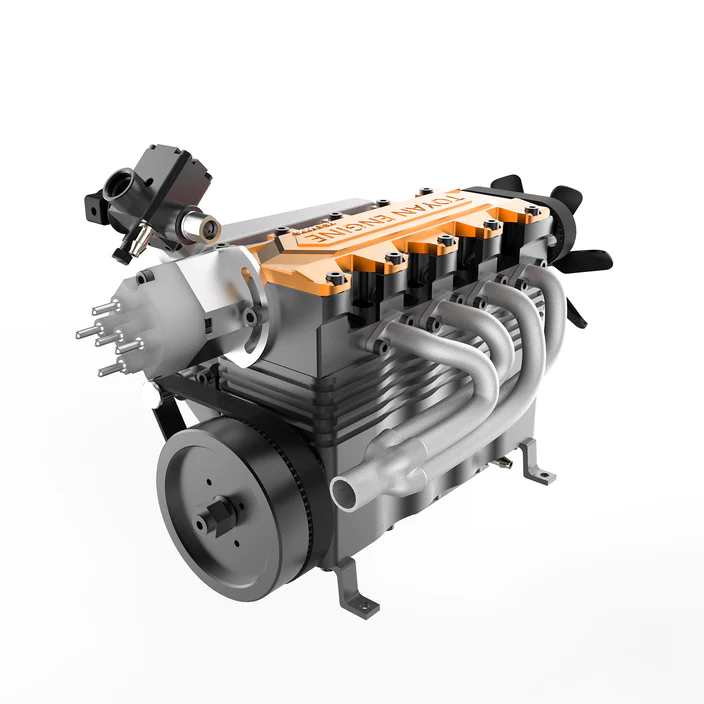

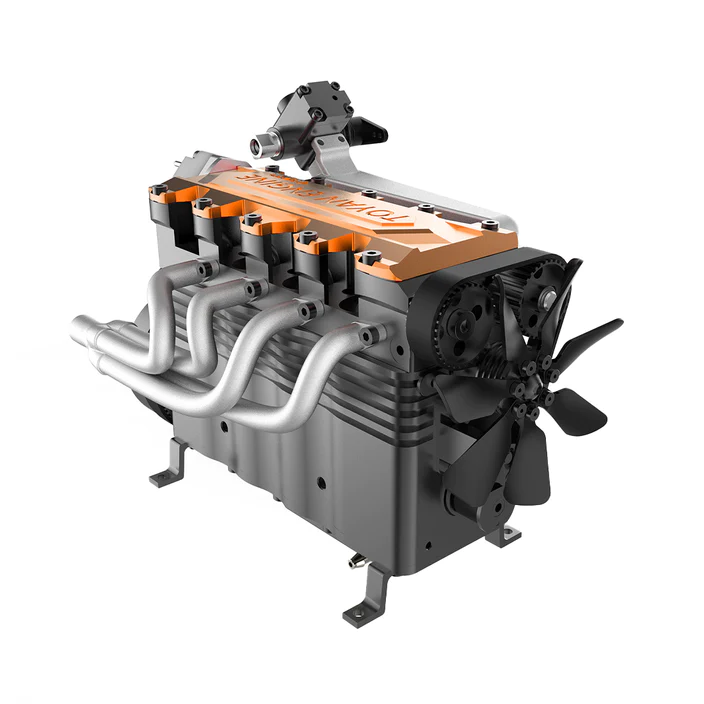

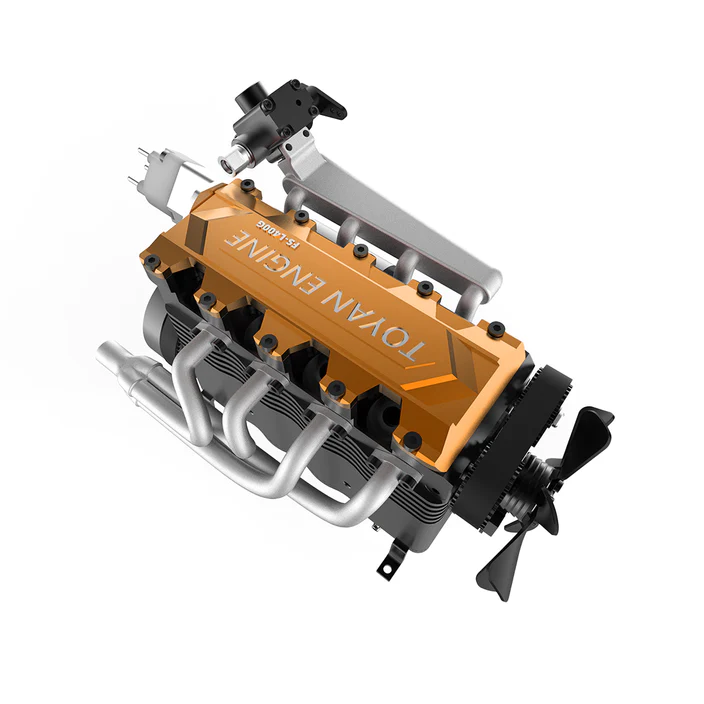

xTOYAN FS-L400BGC 14CC Inline 4 Cylinder 4 Stroke OHC Water-cooled Gasoline Engine Model

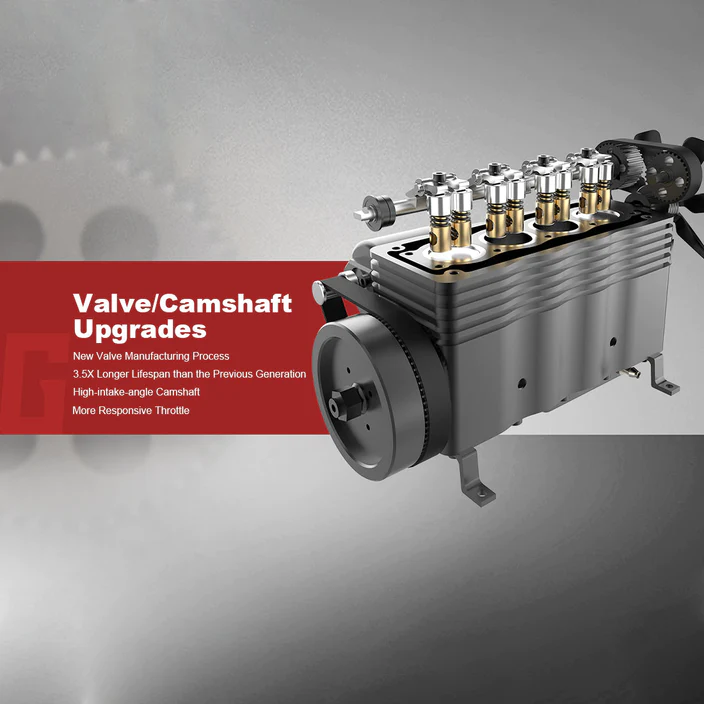

Valve/Camshaft Upgrade:
Improved valve manufacturing process for 3.5 times longer service life than TOYAN L400, large angle camshaft for improved throttle response.

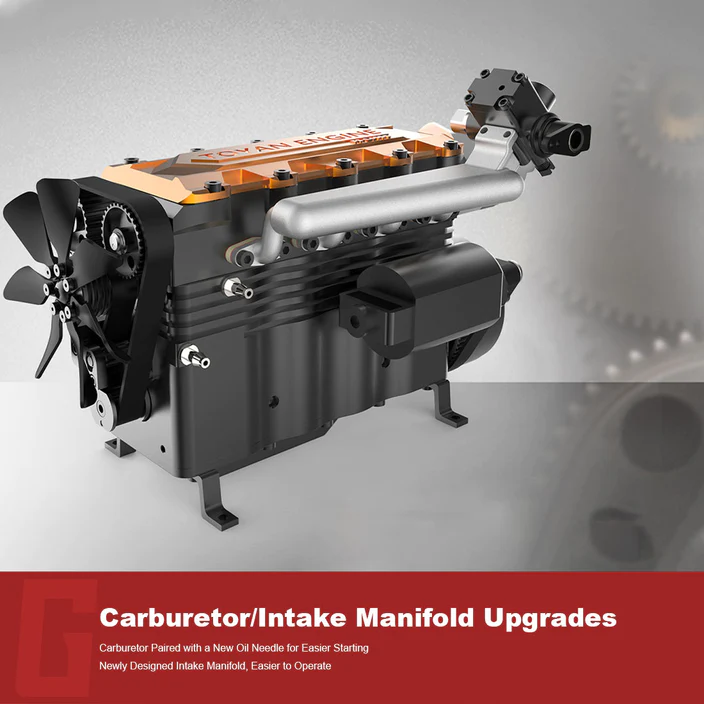

Carburetor/Intake Upgrade:
Carburetor redesigned with adapted fuel needle to simplify starting, new intake manifold to optimize operation.

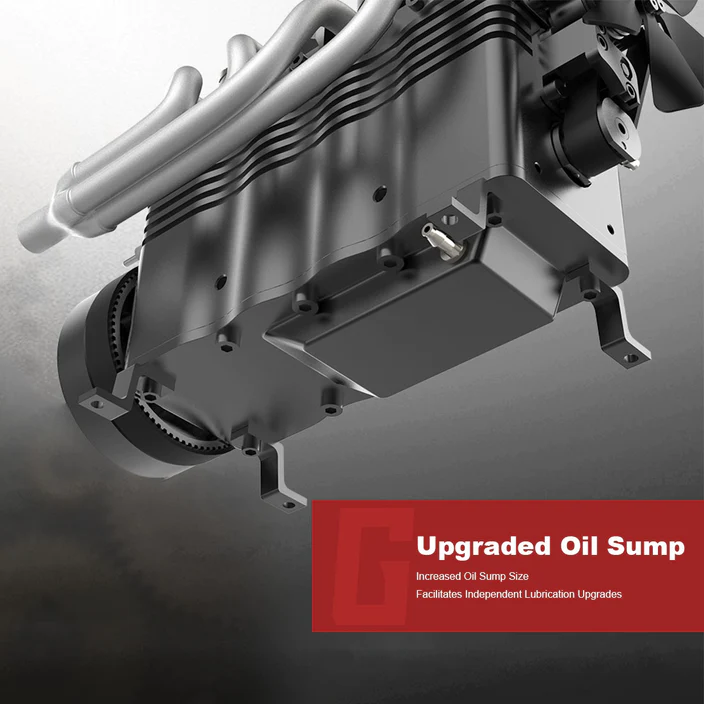

Oil pan upgrade:
Enlarged oil pan size for easy independent lubrication upgrade.

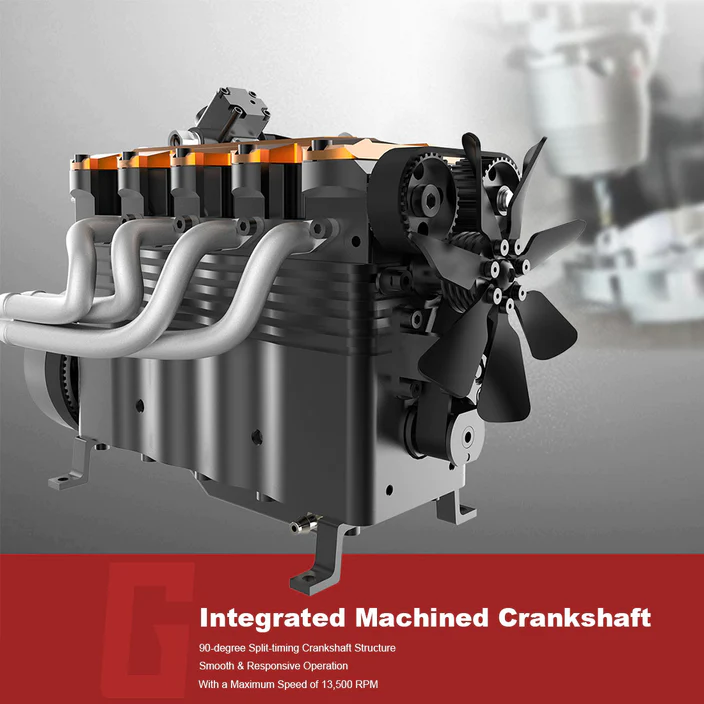

One-Piece Crankshaft:
90-degree phased crankshaft for smooth, responsive operation up to 13,500 rpm.

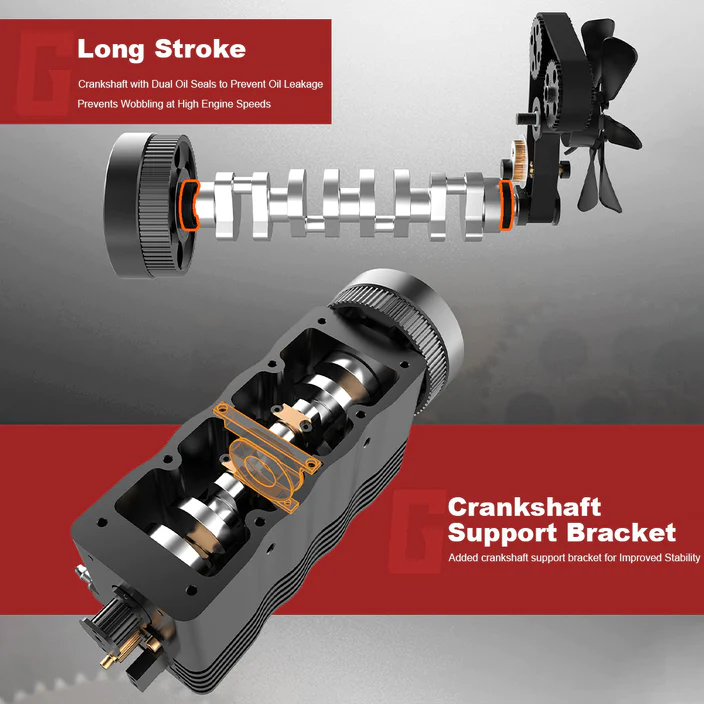

Crankshaft Support Bracket:
Enhances crankshaft stability at high speeds.

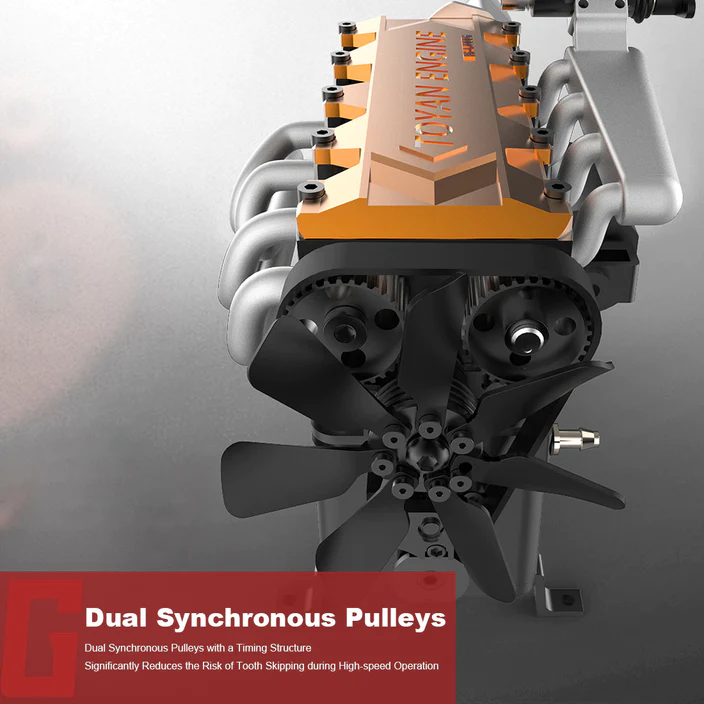

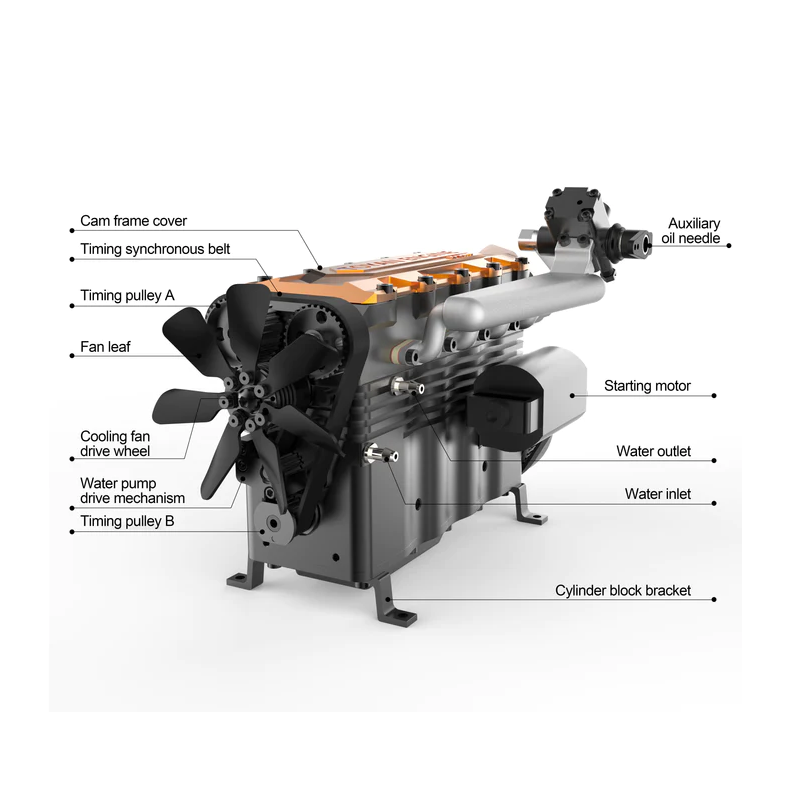

Dual timing pulleys:
Dual pulley structure reduces the risk of tooth jumping at high speed.
Long stroke:
Dual oil seal design prevents oil leakage and maintains high speed stability.
High simulation:
Sports style gold color design, real gasoline running.
Fun DIY:
High-precision parts, simple and easy to learn to assemble, in-depth understanding of the engine and mechanical principles.
Specifications:
Material: Metal
Brand: TOYAN
Model: FS-L400BGC

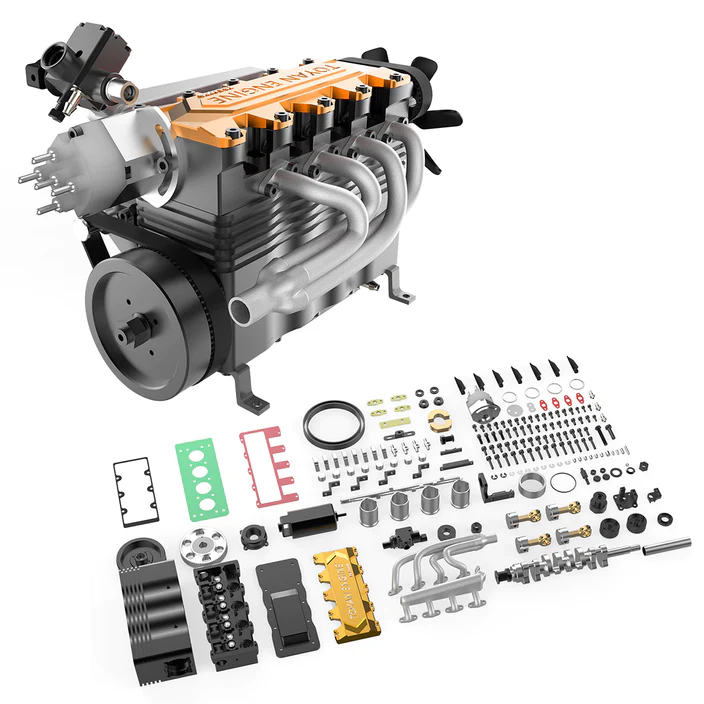

Form: Kit Version
Engine Type: Gasoline Internal Combustion Engine
Valve Mechanism Type: OHC (Overhead Camshaft)
Displacement: 14cc (4 x 3.5cc)
Cylinders: Inline Four-Cylinder
Stroke: Four-Stroke
Bore Diameter: 16.6mm
Stroke Length: 17.0mm
RPM Range: 3200-13500rpm
Power Output: 3.05hp
Cooling System: Water-Cooled + Air-Cooled
Lubrication Method: Splash Lubrication (Upgradable to Independent Lubrication)
Start Mechanism: Electric Start
Ignition Method: CDI Ignition
Spark Plug Type: 1/4-32 Thread ME8 Type Spark Plug
Start Power Source: 6-12V, Recommended 2S-3S Lipo Battery
Fuel Type: 92# and Above Gasoline
Lubricating Oil Type: Common Lubricating Grease (Regularly applied to the camshaft)
Product Weight: 1250g

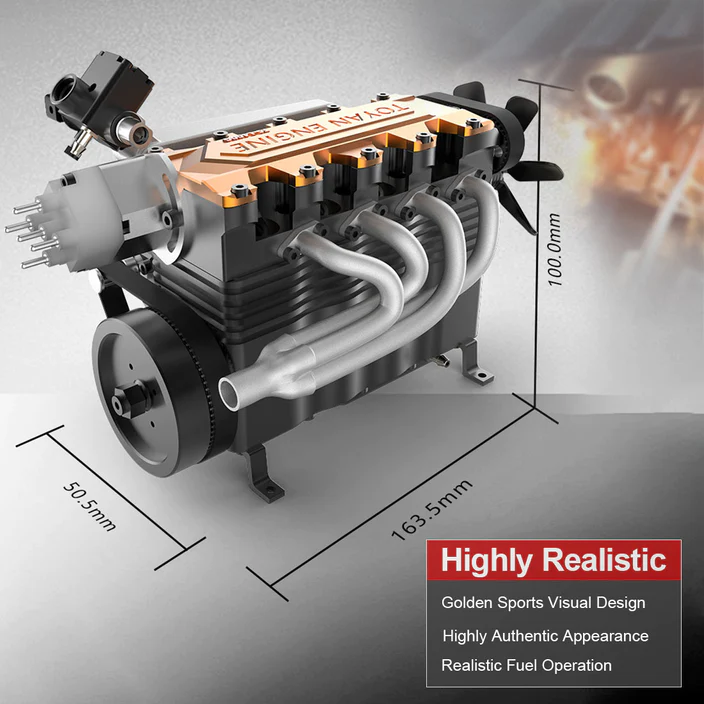

Product Dimensions: 16.35 x 5.05 x 10cm
Package Dimensions: 21.5 x 21.5 x 17cm
Package Weight: 1950g
Packing: Box

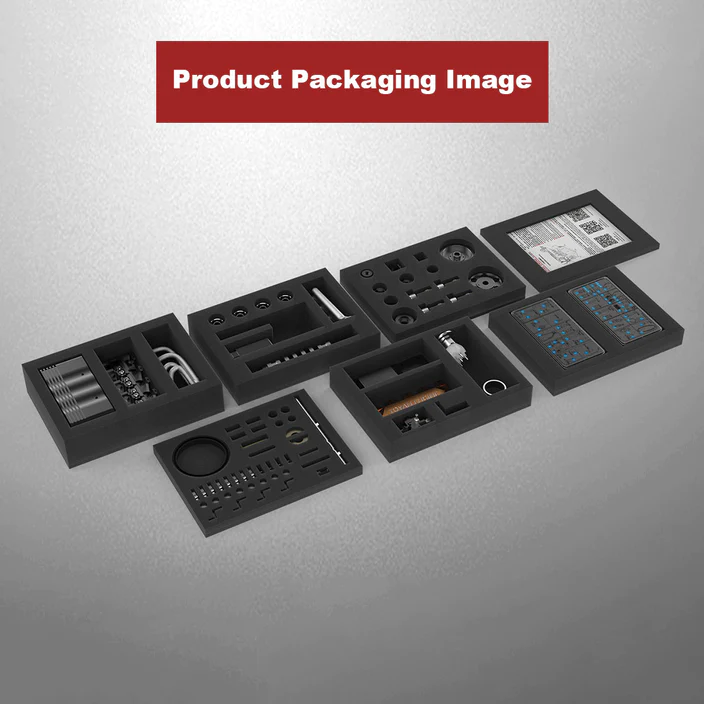

Package List:
1 x TOYAN FS-L400BGC Engine Model Kit
1 x Tool Set for TOYAN Engine
1 x Instruction
