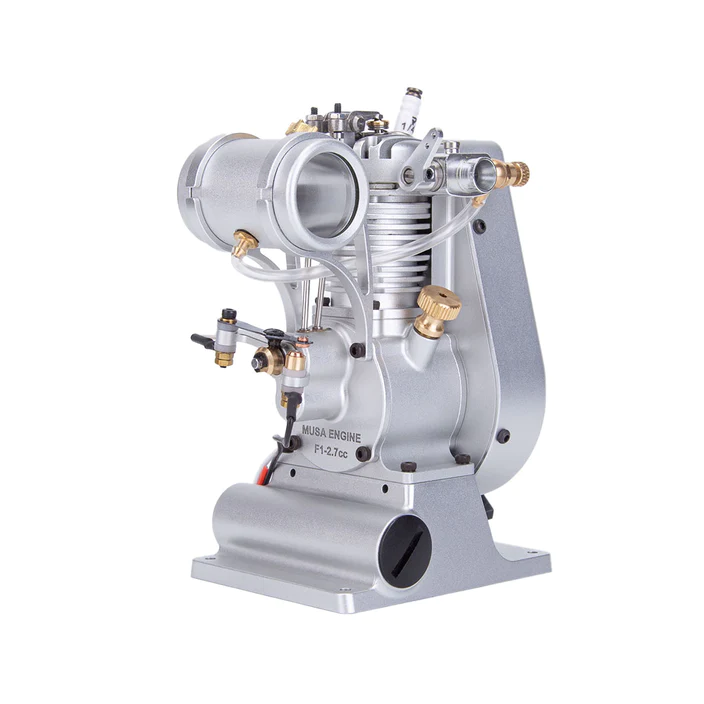

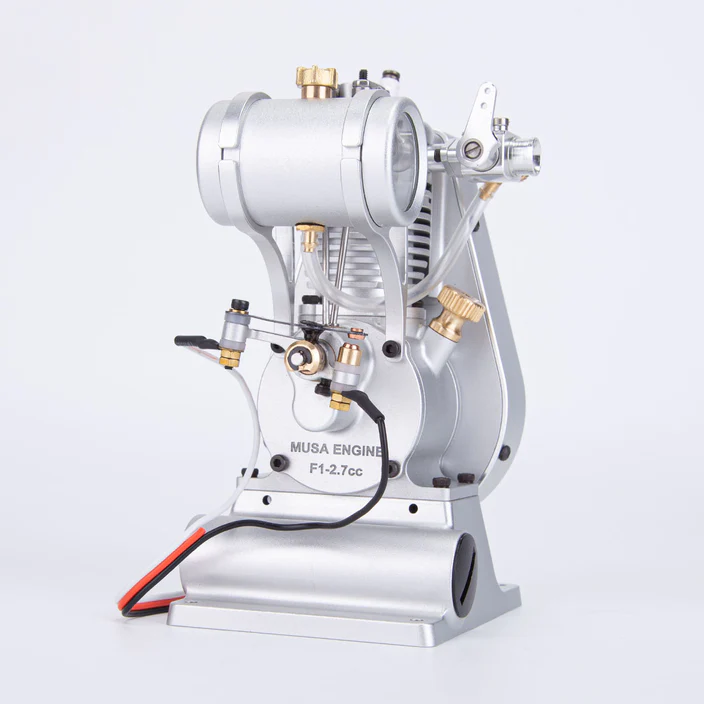

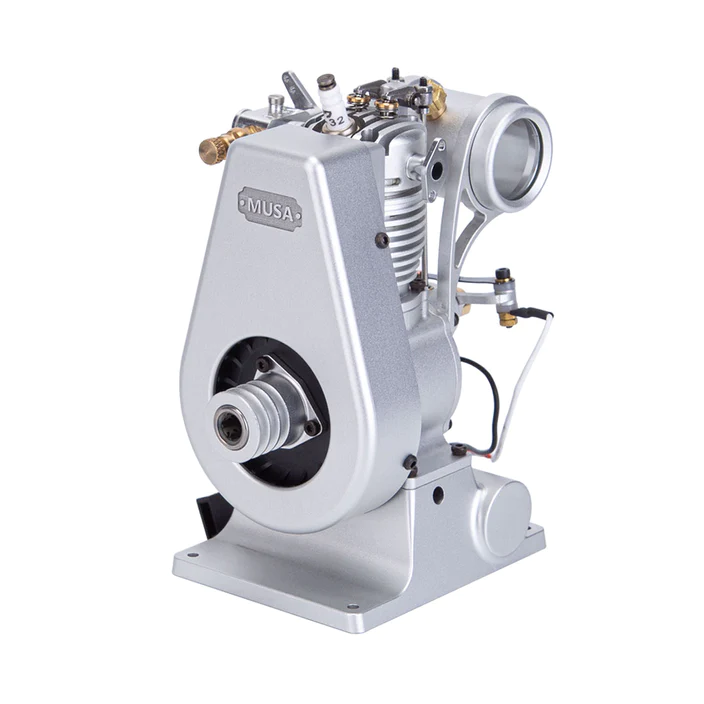

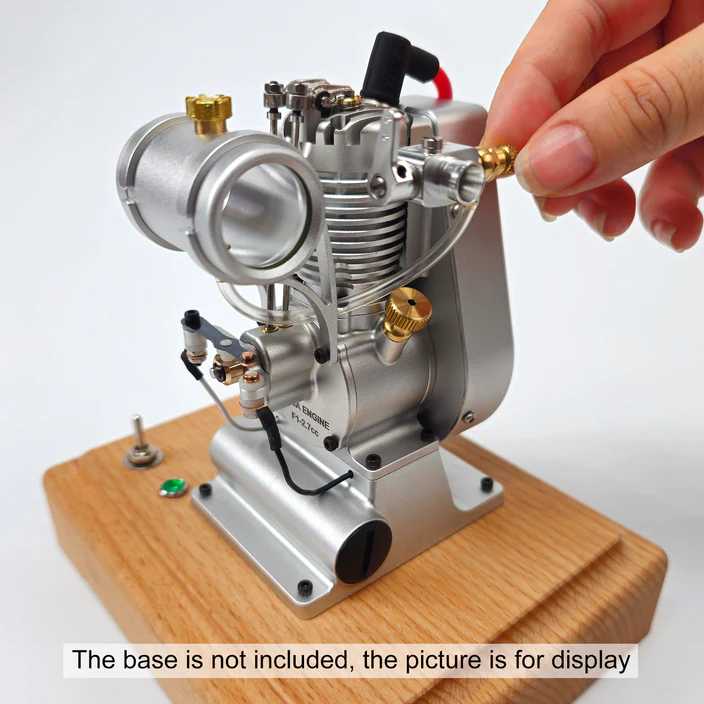

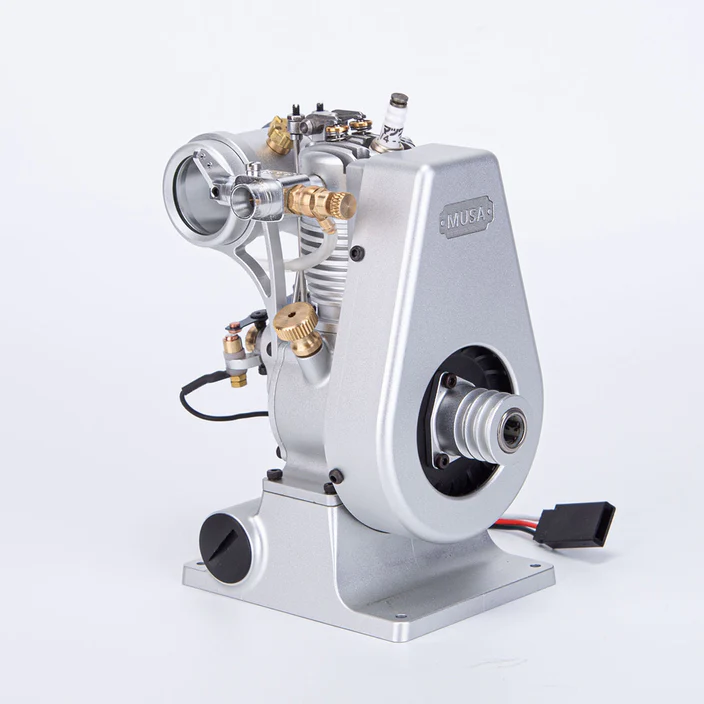

xMUSA F1 2.7cc Mini Vertical OHV Single-Cylinder 4-Stroke Air-Cooled Gasoline Engine Model-RTR
Honoring The Classics:
Luhrs miniature single-cylinder engine not only evokes vintage feelings among engine modelers, but also inspires widespread attention and discussion, serving as a bridge between vintage and innovation.
Exquisite Appearance:

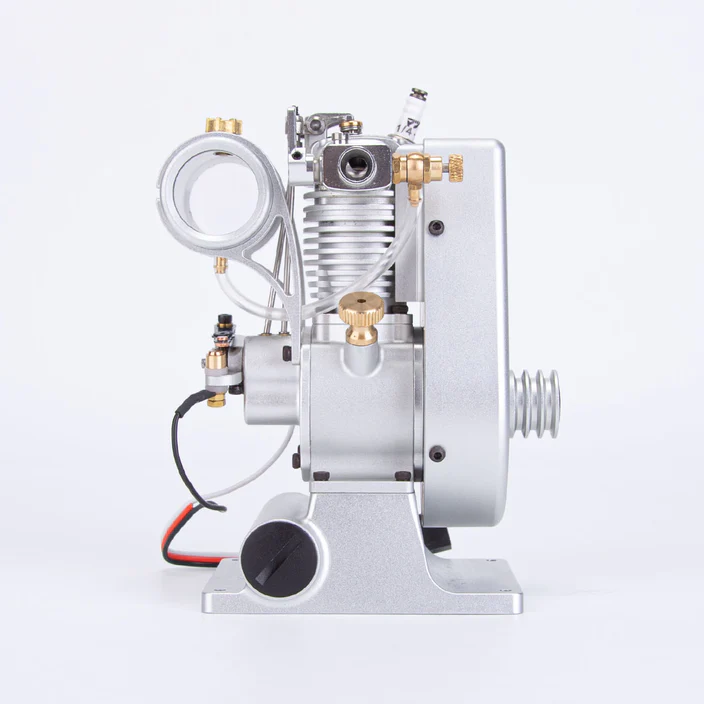

Unique and aesthetically pleasing vertical design, this miniature four-stroke engine stands out with its overall silver color scheme and compact miniature structure, which ensures its attractiveness in working condition.
Ingenious Design:
The use of overhead valve structure with a cam cover with a miniature cooling fan on the right side and an external mechanical ignition trigger that provides an adjustable ignition advance angle demonstrates the ingenuity of its design.
Excellent Craftsmanship:
Fully CNC machined, hardened crankshaft and equipped bearings, together with sandblasted and anodized surfaces, make this engine not only excellent in performance, but also mechanically aesthetically pleasing.
Collection & Gift:
This mini single-cylinder gasoline engine model is the highlight of any model exhibition, not only for its high collector's value and visual appeal, but also for making it an ideal personalized gift choice for machinery enthusiasts.
Specifications:
Material: Metal
Color: As Shown
Brand: MUSA
Model: F1-2.7cc
Form: Finished Version (Ready to Run)
Engine Type: Gasoline/Kerosene Internal Combustion Engine
Valve Mechanism Type: OHV
Cylinder: Vertical Single Cylinder
Stroke: Four Stroke
Displacement: 2.7cc
Bore: 14.8mm
Stroke: 15.8mm
Speed: 800-8000 rpm
Power: About 0.4 hp
Cooling Method: Air Cooling
Lubrication Method: Splash Lubrication
Starting Method: Electric Drill or Hand Pull
Starting Rod Diameter: 6.0mm round steel rod
Output Belt Specifications: Wire Diameter 2.0-2.5mm
Ignition Method: External Mechanical Ignition System (Ignition Breaker Assemblies)
Spark Plug Type: 1/4-32 Thread ME8 Type Spark Plug

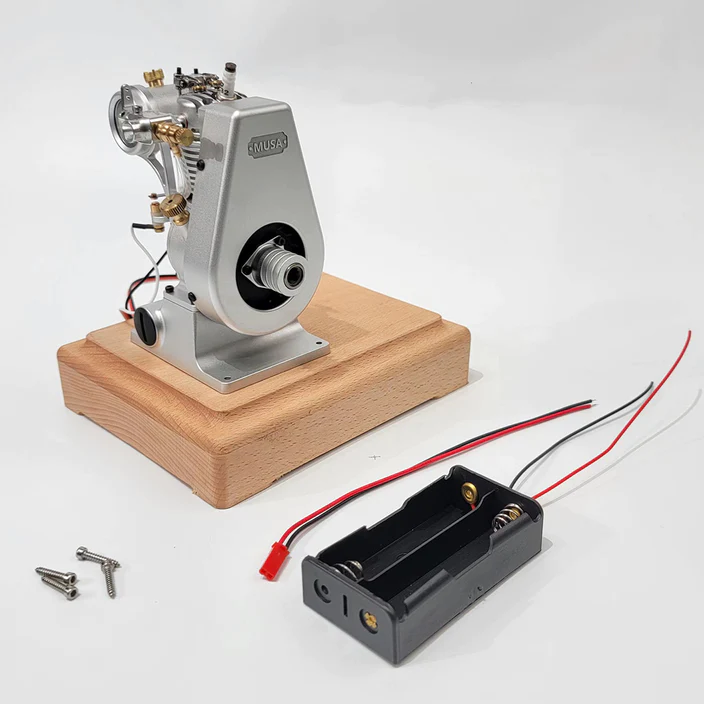

Starting Power Supply: 2S lithium battery (18650 lithium battery*2)
Fuel Type: 92# and Above Gasoline or Kerosene
Oil Type: 5W-30 2T Oil
Product Dimensions: 13.5 x 7 x 10.5cm
Product Weight: 700g
Packing: Box
Ages: 14+

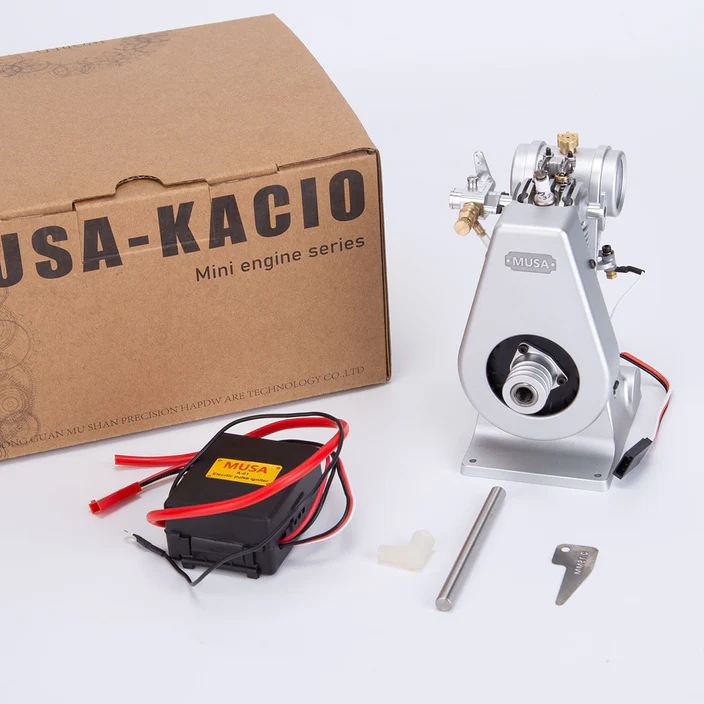

Packing List:
.Engine*1
.CDI igniter*1
.Spark plug (pre-installed)*1
.Fuel tank (pre-installed)*1
.Tool kit*1 set
.Instruction manual*1
