Description

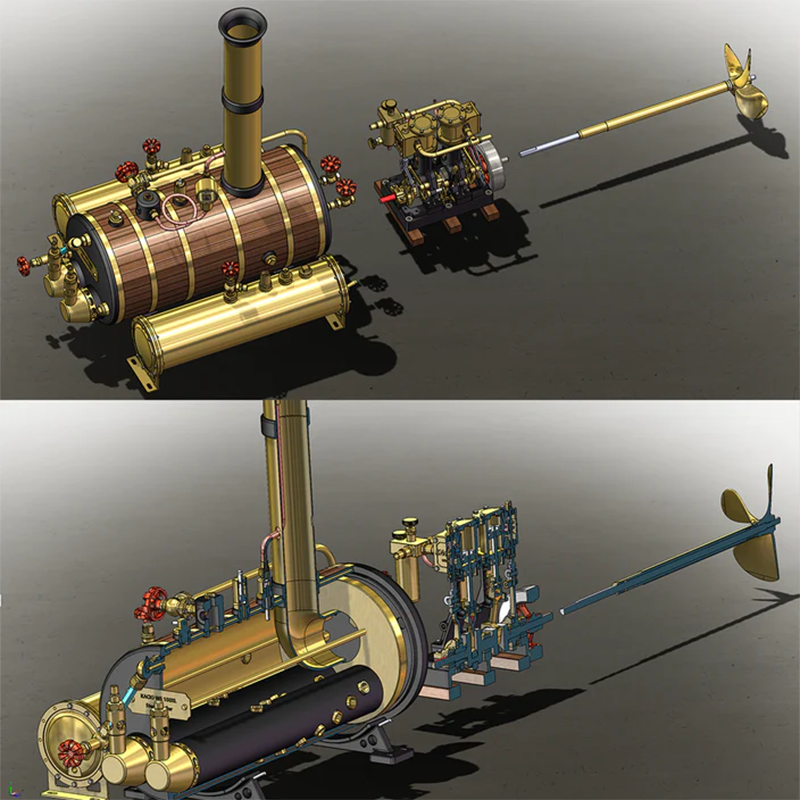

xKACIO WS100L 1000mL Horizontal Steam Boiler for 1.0-1.5m Steam Model Boats and Triple Cylinder Drive Steam Engines or Racing Boats
Well-equipped and efficient:
Designed to balance appearance and performance, this exquisite steam boiler is well-equipped with pressure gauge, steam whistle, master valve, water gauge, double safety valves, and 1/4-40mm pipe connections to ensure easy and safe operation. Its ultra-high heat conversion efficiency is designed so that the dual combustion tubes can raise the pressure to 0.4MPa in about 8 minutes, while the safety valve is set at 0.5MPa to ensure safety during use.
Exquisite material and design:
The main body of the boiler is made of high-quality refined copper, and the exterior is covered with bixa orellana insulation, which significantly improves the heat preservation effect. Designed with practicality and convenience in mind, it is equipped with double steam outlets and reserved flue gas input ports, with one reserved port on each side for attaching other accessories.
Widely used:
Ideal for vintage collectibles and steam modelers, this steam boiler is suitable for a wide range of models such as 1.0-1.5 meter steam model ships, triple-driven steam engines and even racing boats.
Usage Guidelines:
To ensure safety and long term use of the device, please control the water volume within 3/5 of full capacity and the pressure not more than 0.5MPa when using.Pay attention to monitor the burning time to avoid dry burning and thoroughly empty the residual water inside after use. It is recommended to use with a fire protection system to achieve higher gas efficiency and safety; butane is recommended as fuel.
Specifications:
Material: Brass + Bixa Orellana
Brand: KACIO
Type: WS100XL
Boilder Outer Diameter: 105mm
Boilder Length: 190mm
Total Length (Including Spark Plug): 222mm
Full-Load Capacity: 1000mL
Safety Valve Pressure: 0.5MPa
Pipe Joints Specification: 1/4－40mm
Product Weight: 3000g
Packing: Box
Ages: 14+
