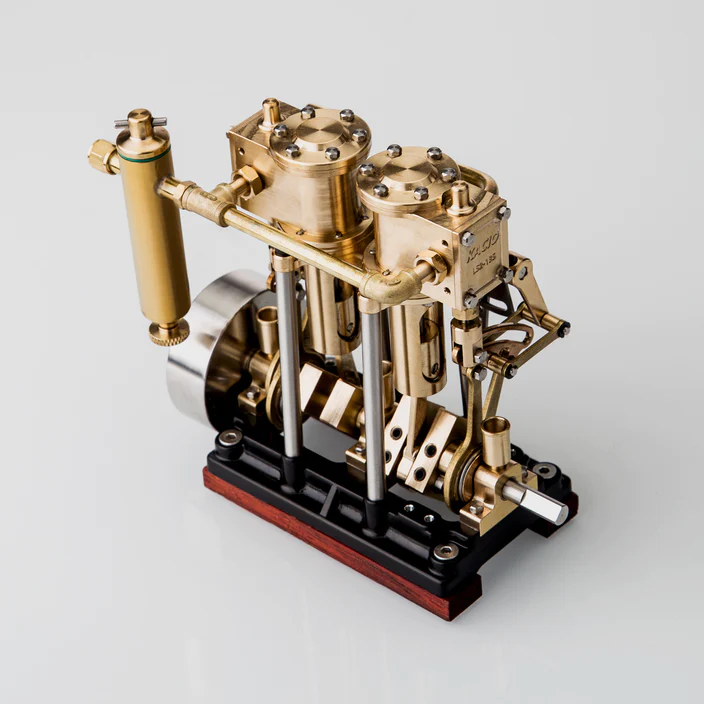

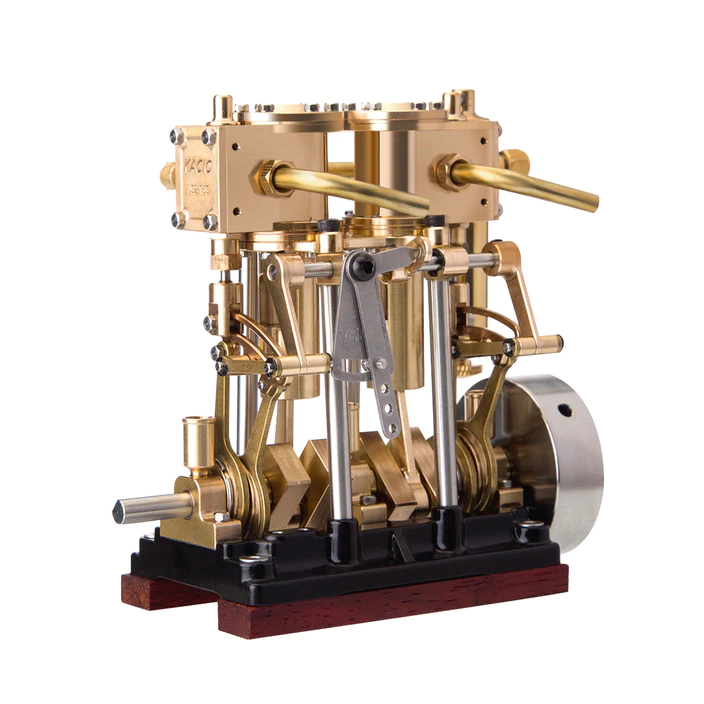

xKACIO LS2-13S Twin-cylinder Vertical Steam Engine Model with Oil Cup and Reverse Rotation - For Steam Model Boat
This KACIO LS2-13S Marine 2-cylinder Reciprocating Steamer stands out for its clean design, excellent performance and cost-effectiveness. Its dimensions are more compact and refined than its counterparts, making it an ideal choice for model boat enthusiasts. The following are its main features:
Precision Craftsmanship:
Adopting precision casting base and CNC precision machined parts with electrophoretic treatment and long-lasting paint on the surface, it not only has an exquisite appearance, but is also rust-resistant and durable. The unique ladder frame structure enhances the torsion resistance of the machine.
Efficient sealing and lubrication:
The cylinder head bonding surface is sealed with 0.08mm purple copper sheet, which is resistant to high temperature and corrosion and ensures stable operation of the machine. The oil cup has oil draining function, the lubricant filling port on the side of piston connecting rod and high hardness beryllium copper spindle bearing provide high quality lubrication for all friction surfaces and prolong service life.
Strong power output:
Designed for 80CM to 120CM length steam model boats, it supports forward and reverse operation, and the large diameter barrel provides strong torque for the propeller. For best performance, it is recommended to use with high efficiency boiler and related valve fittings (to be provided or purchased separately).
Valuable Collections & Gifts:
Its exquisite styling and superior craftsmanship not only make it a collectible mechanical artifact, but also an excellent personal gift for model steam ship enthusiasts.
This steam engine is not only technologically advanced but also thoughtfully designed, making it an ideal choice for lovers of exquisite modeling and efficient performance.
Specifications:
Material: Copper
Model: LS2-13S
Size: base 44mm wide, 76mm long, 95mm high + 6mm thick sleepers
Cylinder diameter: 14.0mm
Stroke: 12.0mm
Spindle diameter: 5.0mm
Spindle center ground height: 17.0mm
Operating pressure: 0.05Mpa-0.8mpa
Recommended air pressure: 0.2Mpa-0.6mpa
Inlet interface thread: M6-0.5 1/4-40

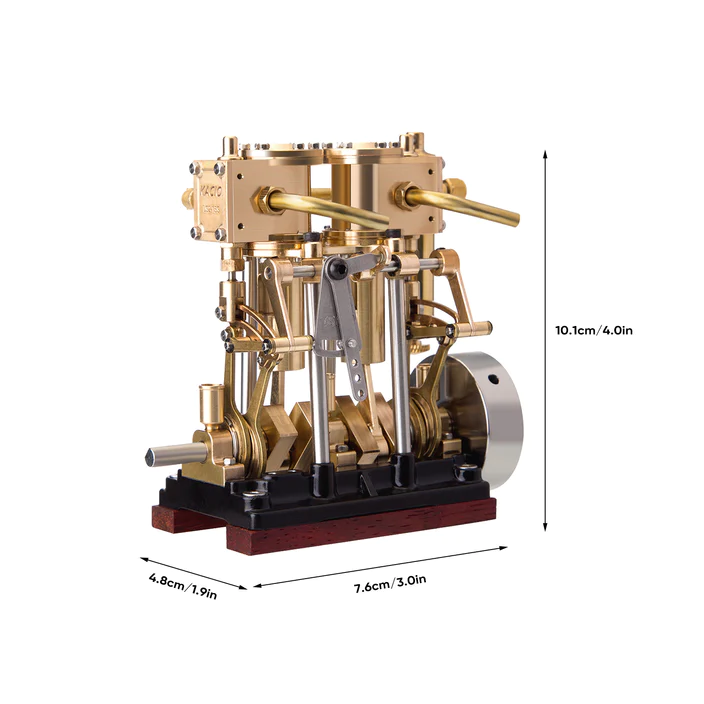

Product Dimensions: 7.6 x 4.8 x 10.1cm
Product Weight: 660g
Package Dimensions: 21 x 16 x 16cm
Package Weight: 950g
Packing: Box
