xKACIO LS1-14 High-Performance Single Cylinder Reciprocating Steam Engine Model for Ships and Boats Over 60cm

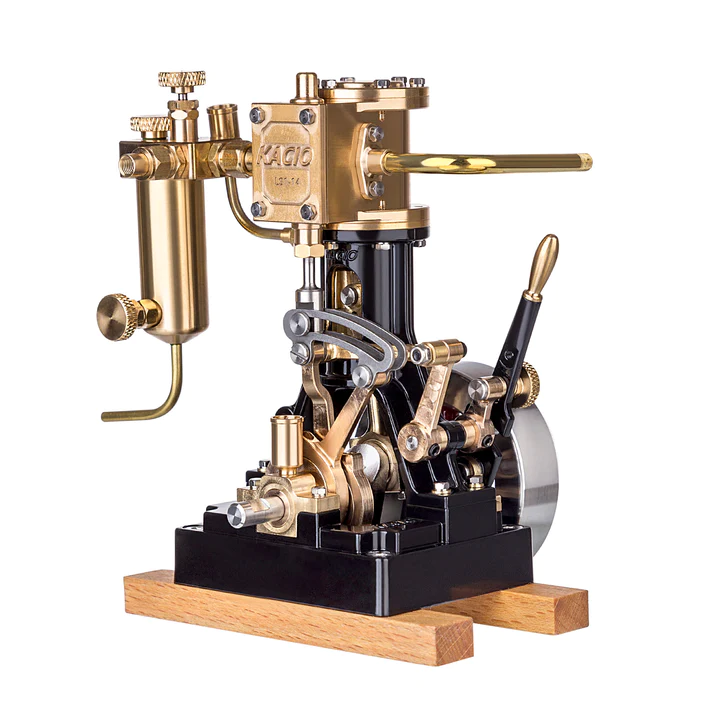

This KACIO LS1-14 Single Cylinder Reciprocating Steam Engine model uses advanced manufacturing technology to provide an ideal power solution for model boats and model ships over 60cm.
Electrophoretic treatment of the hull surface:
Ensures long-term color stability and effectively prevents fading.
One-piece CNC steel crankshaft:
Improves stability and concentricity, ensuring precise mechanical operation.
Viton ring sealing technology:
This sealing method of the bonding surface is both high temperature resistant and corrosion resistant, which guarantees the long-term stable operation of the machinery.
Multi-function oil cup and excellent lubrication system:
Ensure the good lubrication of all friction surfaces, prolonging the service life of the machinery.
High hardness beryllium copper material spindle sleeve:
Provides extra durability and stability.
Forward and reverse function:
Suitable for model boats over 60cm, capable of providing strong and flexible power to the boat.
Large cylinder bore and large stroke design:
Ensures that the ship gets strong propulsion.
High-efficiency boiler recommended:
Although boilers are not included, high-efficiency boilers are recommended to maximize power (boilers need to be purchased separately or inquired about).
Miniature Exquisite Mechanical Crafts:
Not only a high performance steam engine, but also a beautiful collector's item.
ideal gift option:
For steam modeling enthusiasts, this model steam engine is undoubtedly a surprise gift.
compact size design:
The base measures 58mm wide, 48mm long and 110mm high, making it easy to install and display.
Overall, the KACIO LS1-14 Single Cylinder Reciprocating Steam Engine model offers model ship enthusiasts a practical and collectible power system option with its excellent design and manufacturing process.
Specifications:
Color: As Shown
Material: Copper
Model: LS1-14
Cylinder Diameter: 14.0mm
Stroke: 15.0mm
Spindle Diameter: 5.0mm
Ground Clearance of Spindle Center: 19.0mm
Operating Pressure: 0.1Mpa - 0.8Mpa
Air Pressure Recommended: 0.4Mpa - 0.6Mpa
Intake Connection Thread: M6-0.5 1/4-40
Product Size: 4.8 x 5.8 x 11cm
Product Weight: 850g
Package Dimensions: 8 x 8 x 15cm
Package Weight: 1150g
Packing: Box
Package Content:
.1Set x Steam Engine Model
