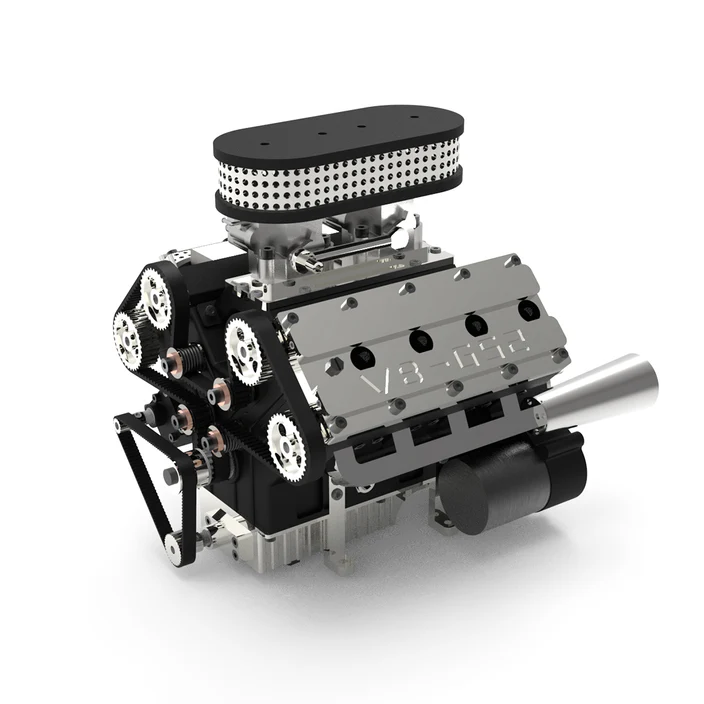

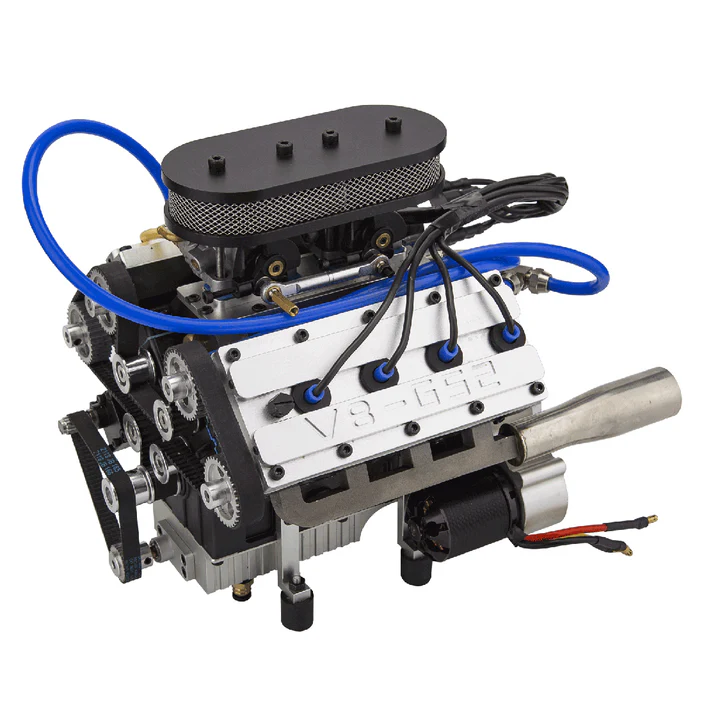

xENJOMOR GS-V8 78CC DOHC Four-Stroke Water-Cooled V8 Model V8 Engine Model Kit Functional Electric Gasoline Engine
Experience the exceptional power of the ENJOMOR GS-V8 78CC DOHC Four-Stroke Water-Cooled V8 Engine Model. This high-performance engine features a DOHC valve mechanism, exposed timing belt, and a robust design for extraordinary power.
Independent Lubrication System:
Efficient oil pump for optimal lubrication.
Effective Heat Dissipation:
Side water-cooling pump for extended engine life.
Convenient Operation:
Hall-type CDI pulse ignition and brushless starter motor for easy one-key start.
Precision Manufacturing:
Full aluminum CNC housing with a realistic look and authentic engine sound.
High Combustion Efficiency:
Three piston rings and an oil ring ensure strong compression.
Durable Construction:
Super-hard piston cylinder liner and a one-piece crankshaft with full bearing support.
Versatile Applications:
Suitable for large-scale model cars, boats, tanks, and as a desktop DIY model.
Collector’s Delight:
Renowned for reliability and performance among engine enthusiasts.
Required Additional Parts: CDI ignition (10-12V), 80A ESC (38-48V, 10-12S battery), fuel tank, fuel pipe, cooling fan, and water cooling pipe.
Specifications:
Material: Metal
Brand: ENJOMOR
Item NO.: GS-V8.
Status: Finished Version
Type: Gasoline Internal Combustion Engine
Valve: DOHC
Displacement: 78cc
Cylinder: V-shaped Eight-cylinder
Stroke: Four-stroke
Bore: 22.9mm
Stroke: 20.00mm
Output Shaft Diameter: 10mm
Compression Ratio: 1/14
Maximum Speed: 9000rpm
Maximum Power: 3.8kw
Cooling: Water-cooling
Lubrication: Independent Lubrication (Oil Pump Lubrication)
Starting: Electric Starting (with Brushless Starter Motor)
Ignition: CDI igniter & Distributor
Spark Plug Type: ME8 Spark Plug with 1/4-32 Thread
Ignition Voltage: 10-12V
Starting Power: 24-48V Battery (Not Included)
Fuel: 95# Gasoline
Oil: 20W and above, Oil Volume: 50ml
Product Dimensions: 13.6 x 17.9 x 13.8cm
Product Weight: 4500g
Package Dimensions: 35 x 20 x 20cm.Package Weight: 5500g
Packing: Box
Package List:
1 * ENJOMOR V8 Engine
8 * Spark Plugs
1 * V8 Pendant
