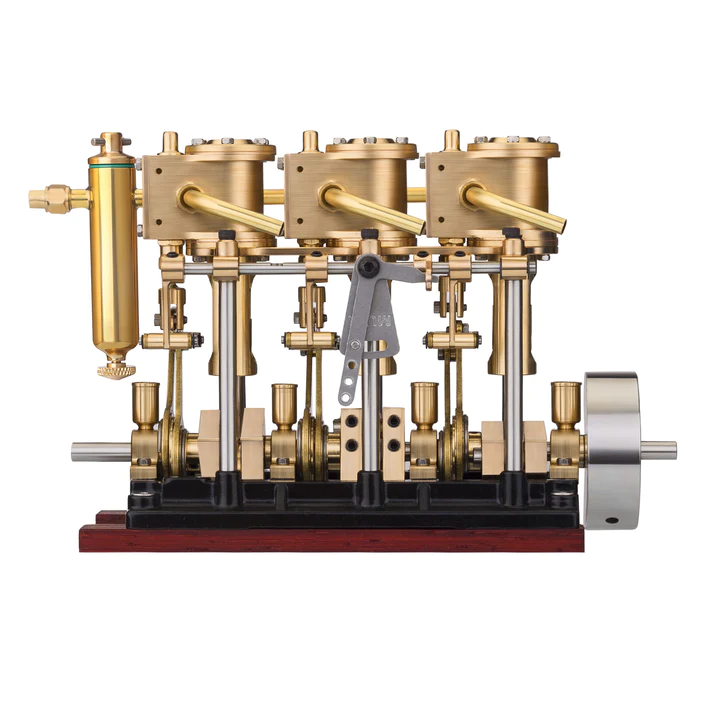

KACIO LS3-13S 3-Cylinder Reciprocating Steam Engine with Oil Cup and Reverse Rotation for Model Boats

KACIO LS3-13S 3-Cylinder Reciprocating Steam Engine with Oil Cup and Reverse Rotation for Model Boats


This KACIO LS3-13S Marine Triple Cylinder Reciprocating Steamer blends clean design and superior performance to provide excellent value for money. It features a smaller, more refined design that appears more compact even with the same cylinder bore.

Exquisite craftsmanship:
Its precision cast base is treated with surface electrophoresis and painted for a long time to effectively prevent rust. The use of CNC-finished parts not only increases the precision of the machine, but the unique ladder frame structure also significantly improves its torsion resistance.

High quality material:
In terms of details, the cylinder head bonding surface is sealed with 0.08mm thick purple copper sheet to withstand high temperature and prevent corrosion. The spindle bearings are made of high hardness beryllium copper to ensure the long-term stable operation of the machine.

Oil draining function:
In addition, its oil cup design has an oil drain function, and there is a lubricant filling port on the side of the piston connecting rod to ensure that all friction surfaces are fully lubricated, thus prolonging the service life.

Ingenious design:
Designed for steam model boats from 80CM to 120CM in length, this steamer supports forward and reverse operation, and its large diameter barrel provides strong torque for the propeller. For optimum performance, a high-efficiency boiler and related valve fittings (available separately or for purchase) are recommended.

Collections & Gifts:
Its compact and exquisite design is not only a delight to hold, but also has a high collector's value, making it an ideal gift for model steam boat enthusiasts.




Specifications:
Material: Copper
Model: LS3-13S
Size: base 48mm wide, 111mm long, 95mm high + 6mm thick sleepers
Cylinder diameter: 14.0mm
Stroke: 12.0mm
Spindle diameter: 5.0mm
Spindle center ground height: 17.0mm
Operating pressure: 0.05Mpa-0.8mpa
Recommended air pressure: 0.2Mpa-0.6mpa
Inlet interface thread: M6-0.5 1/4-40
Product Dimensions: 11.1 x 4.8 x 10.1cm
Product Weight: 930g
Package Dimensions: 21 x 16 x 16cm
Package Weight: 1200g
Packing: Box
